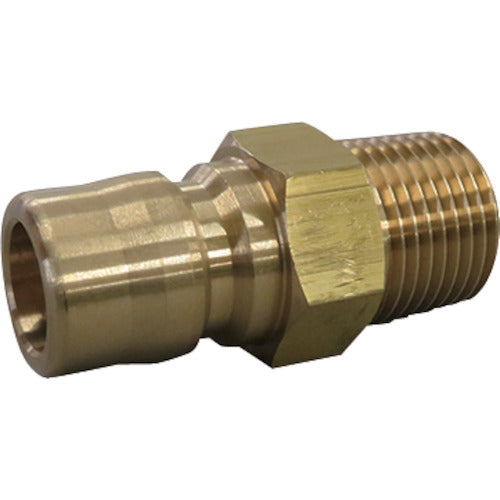

FLOBAL Double-opening quick coupling TS-3PM (BSBM) TS-3PM (BSBM) 1 piece

Catalog number: TS-3PM (BSBM) Features: ●A double-way open coupling with no valve mechanism on either the socket or plug side. ●Ideal for piping systems where there is no need to shut off the fluid when the socket and plug are separated. ●The internal structure has low flow resistance, so there is little pressure loss and it is suitable for piping high viscosity fluids, steam, powders, etc. ●Both the socket and plug are available for male thread connection, female thread connection, and hose connection, and can be freely combined. Applications: ●For hydraulic equipment, hydraulic piping, water piping, steam piping, seawater piping, etc. ●For chemical plants, chemicals, high pressure gas piping, etc. Specifications: *Matching size: Rc3/8 *Fluids: Air, water, hydraulic oil *Maximum pressure (MPa): 7.5 *Normal pressure (maximum pressure) (Mpa): 5.0 (7.5) for TS-2 to TS-4, 3.0 (4.5) for TS-6 to TS-8 *Fluids: Air, water, hydraulic oil *Temperature range: -20 to 180°C *Double-way open type Material/Finish: *Body: Brass (C3604) *Valve packing: Fluorine rubber (FPM) Caution: *Please note that if the nominal diameter is different, the socket and plug cannot be connected. *As the nominal diameter increases, the pressure resistance decreases, so please use with care.
