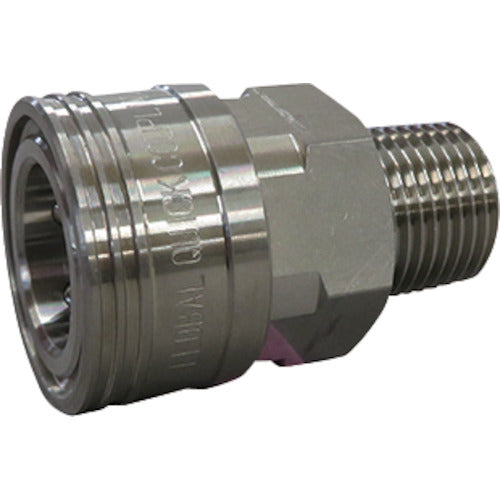

FLOBAL Double-opening quick coupling TS-4SM (SUS304) TS-4SM (SUS304) 1 pc

Catalog number: TS-4SM (SUS304) Features: ●A double-way open coupling with no valve mechanism on either the socket or plug side. ●Ideal for piping systems where there is no need to shut off the fluid when the socket and plug are separated. ●The internal structure has low flow resistance, so there is little pressure loss and it is suitable for piping high viscosity fluids, steam, powder, etc. ●Both the socket and plug are available for male thread connection, female thread connection, and hose connection, and can be freely combined. Applications: ●For hydraulic equipment, hydraulic piping, water piping, steam piping, seawater piping, etc. ●For chemical plants, chemicals, high pressure gas piping, etc. Specifications: ● Fluid used: Alkaline, salt water ● Maximum operating pressure (MPa): 10.0 ● Counterpart mounting size: Rc1/2 ● Normal pressure (maximum operating pressure) (Mpa): 7.5 (10.0) for TS-2 to TS-4, 4.5 (6.5) for TS-6 to TS-8 ● Operating temperature range: -20 to 180°C ● Maximum operating pressure: 10.0MPa ● Two-way open type Material/Finish: ● Body: Stainless steel (SUS310) ● Valve packing: Fluorine rubber (FPM) Caution: ● Please note that if the nominal diameter is different, the socket and plug cannot be connected. ● As the nominal diameter increases, the pressure resistance decreases, so please use with care.
