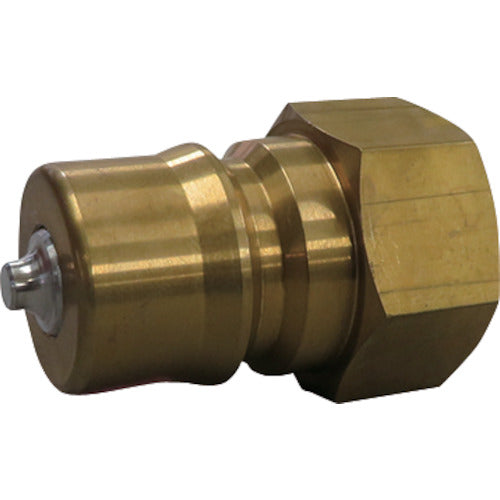

FLOBAL Double-sided open/close type quick coupling KS-3P (BSBM) KS-3P (BSBM) 1 piece

Catalog number: KS-3P (BSBM) Features: ● A two-way open/close coupling with built-in automatic open/close valves on both the socket and plug. ● The moment the socket and plug are separated, both the socket side and the plug side are completely sealed. ● Finished with high precision using the latest processing technology, it has excellent airtightness both when separated and connected. ● The passage opens at the same time as connection and closes at the same time as separation, so there is almost no loss of fluid or air mixing. Applications: ● For water piping, seawater, oxygen, acetylene, steam piping, etc. ● For chemicals, chemical plants, high-pressure gas piping, etc. Specifications: *Matching size: R3/8 *Fluids used: air, water, hydraulic oil *Maximum operating pressure (MPa): 7.5 *Normal pressure (maximum operating pressure) Mpa: KS-2 to KS-3: 5.0 (7.5), KS-4 to KS-8: 3.0 (4.5) *Fluids used: air, water, hydraulic oil *Operating temperature range: -20 to 180°C *Double-way opening and closing type Material/Finish: *Body: Brass (C3604) *Valve packing: Fluorine rubber (FPM) Caution: *Please note that if the nominal diameters are different, it is not possible to connect the socket and plug. *If the connection side is a hose nipple or female thread, please use a commercially available joint.
