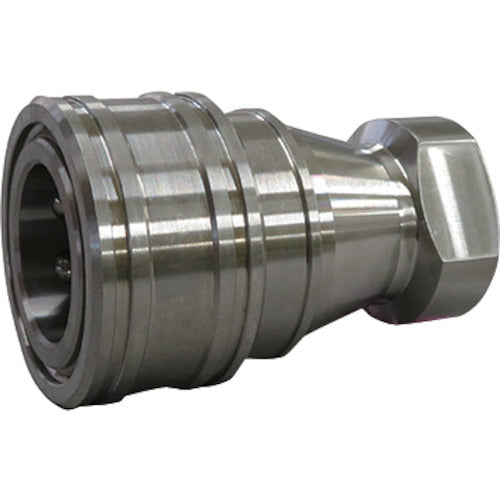

FLOBAL Double-sided open/close type quick coupling KS-6S (SUS304) KS-6S (SUS304) 1 piece

Catalog number: KS-6S (SUS304) Features: ●A two-way open/close coupling with built-in automatic open/close valves on both the socket and plug. ●The moment the socket and plug are separated, both the socket side and the plug side are completely sealed. ●It is finished with high precision using the latest processing technology, so it has excellent airtightness both when separated and connected. ●The passage opens at the same time as the connection and closes at the same time as the separation, so there is almost no loss of fluid or air mixing. Applications: ●For water piping, seawater, oxygen, acetylene, steam piping, etc. ●For chemicals, chemical plants, high-pressure gas piping, etc. Specifications: ● Fluid used: Alkaline, salt water ● Maximum operating pressure (MPa): 6.5 ● Counterpart mounting size: R3/4 ● Normal pressure (maximum operating pressure) Mpa: 7.5 (10.0) for KS-2 to KS-3, 4.5 (6.5) for KS-4 to KS-8 ● Operating temperature range: -20 to 180°C ● Maximum operating pressure: 6.5MPa ● Two-way opening and closing type Material/Finish: ● Body: Stainless steel (SUS304) ● Valve packing: Fluorine rubber (FPM) Caution: ● Please note that if the nominal diameter is different, it is impossible to connect the socket and plug. ● If the connection side is a hose nipple or female thread, please use it by attaching a commercially available joint.
