FLOBAL round hose nipple (SUS304TP) 04100469 VRHN-16 1 piece

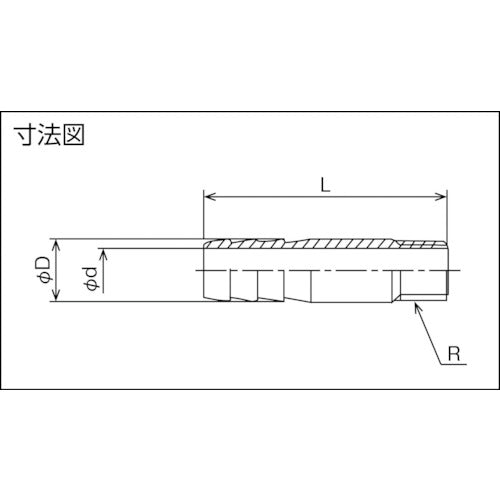

Catalog number: VRHN-16 Features: ●Compatible with stainless steel piping. ●Widely used in buildings, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the mainstay of piping. ●This product is an upgrade over conventional threaded fittings and has been developed as a fitting that is easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●L (mm): 80 ●φD (mm): 59.5 ●φd (mm): 53.5 ●Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SUS304TP)
