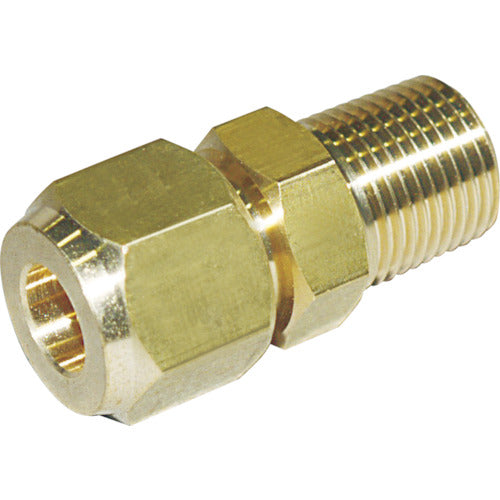

FLOBAL Refrigerant Flare Joint Half Union N Included 07201109 HU-34 N 1 pc

Catalog number: HU-34 N Use: ● For refrigerant piping Specifications: ● Connection size: 3/8 flare PT1/2 inch (male) ● Hexagonal face size (mm): 24 ● Maximum operating pressure: 7.0MPa ● Normal operating pressure: 4.3MPa ● Operating temperature range: -20 to 150°C (no freezing) ● [Examples of target refrigerants (when used on the high pressure side) Type 1] Maximum operating pressure: 3.45MPa, target refrigerants: R22, R134a, R404A, R407C, R507A ● [Examples of target refrigerants (when used on the high pressure side) Type 2] Maximum operating pressure: 4.30MPa, target refrigerant: R410A Material/Finish: ● Nut: C3604 ● Body: C3604
