FLOBAL Same diameter tee S10S 09100066 B-TS-10S-50A 1 piece

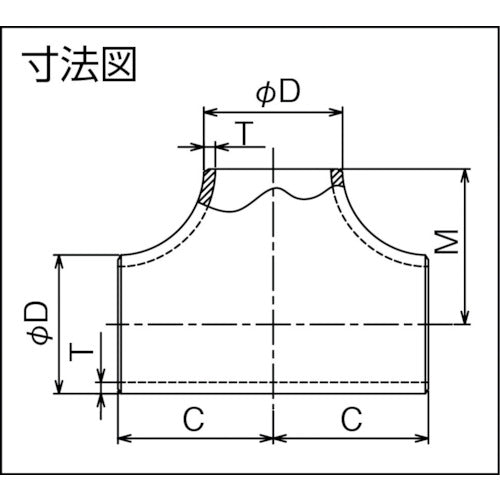

Catalog number: B-TS-10S-50A Features: ●Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ●Stainless steel butt welded pipe fittings Applications: ●Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●C (mm): 63.5 ●M (mm): 63.5 ●Outer diameter D (mm): 60.5 ●T (mm): 2.8 ●JIS B2313 standard product Material/Finish: ●Stainless steel (SUS304W)
