FLOBAL Pressure Gauge Socket (SUS316) 04103703 OJ-343 1 pc

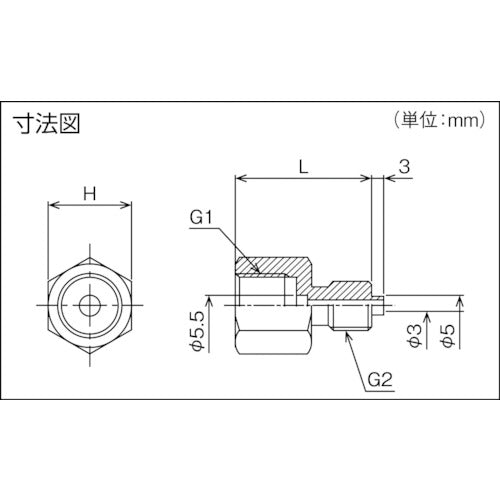

Catalog number: OJ-343 Features: ● Compatible with stainless steel piping. ● Widely used in construction, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the mainstay of piping. ● This product has been developed as an easier-to-use joint by further upgrading the conventional threaded joint. Applications: ● For steam, air, gas, and oil. Specifications: ● Nominal diameter A: 10 x 15 ● Nominal diameter B: 3/8 x 1/2 ● L (mm): 40 ● H (mm): 22 ● Type: Female thread PF x male thread PF ● Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ● Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ● Stainless steel (SUS316)
