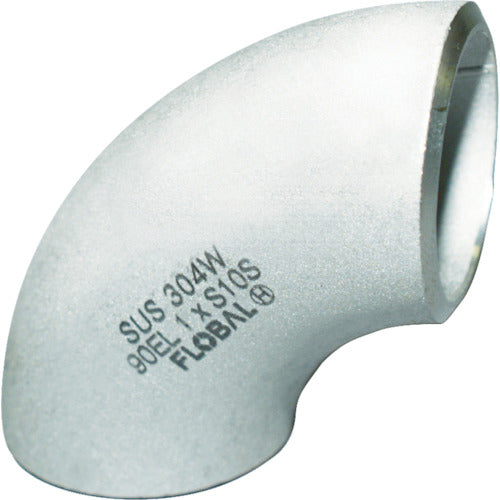

FLOBAL 90° Elbow (Long) S10S 09100002 B-90EL-10S-20A 1 pc

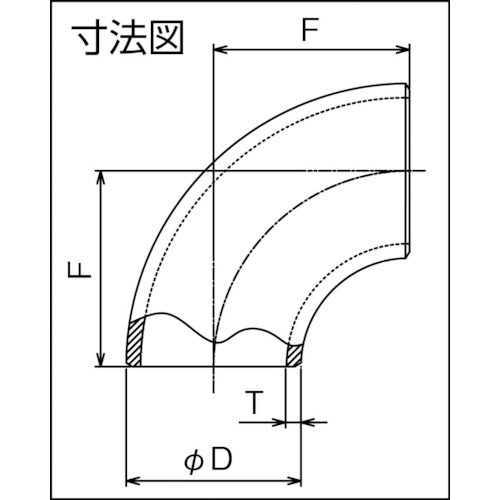

Catalog number: B-90EL-10S-20A Features: ● Manufactured using cold bending, hydraulic forming, and sheet drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ● Stainless steel butt welded pipe fittings Applications: ● Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● T (mm): 2.1 ● F (mm): 38.1 ● Outer diameter D (mm): 27.2 ● JIS B2313 standard product Material/Finish: ● Stainless steel (SUS304W)
