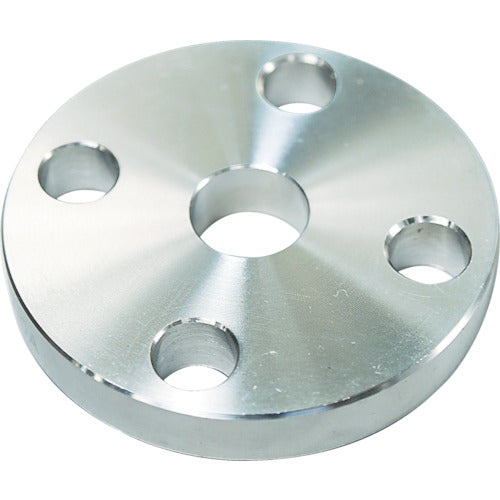

FLOBAL SUS304 10K Slip-on Welded Flange 14100524 SUS-10K-SOP-FF-50A 1 pc

Catalog number: SUS-10K-SOP-FF-50A Features: ● Forged flange with excellent weldability and strength. ● Both sides of the flange seal (both sides of the flange face) can be used with double-sided seals. ● Complies with JIS B2220. Applications: ● For connecting pipes. Specifications: ● Nominal diameter A: 50 ● Nominal diameter B: 2 ● Inner diameter (mm): 61.1 ● Outer diameter (mm): 155 ● Thickness (mm): 16 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 19 ● Operating pressure (K): 10 ● JIS B2220 standard product Material/Finish: ● Stainless steel (SUS304)
