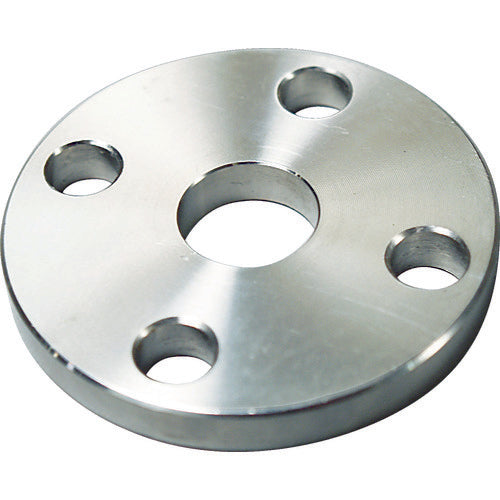

FLOBAL SUS304 5K Slip-on Welded Flange 14100502 SUS-5K-SOP-FF-15A 1 pc

Catalog number: SUS-5K-SOP-FF-15A Features: ● Forged flange with excellent weldability and strength. ● Both sides of the flange seal (both sides of the flange face) can be used with double-sided seals. ● Complies with JIS B2220. Applications: ● For connecting pipes. Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Inner diameter (mm): 22.2 ● Outer diameter (mm): 80 ● Thickness (mm): 9 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 12 ● Operating pressure (K): 5 ● JIS B2220 standard product Material/Finish: ● Stainless steel (SUS304)
