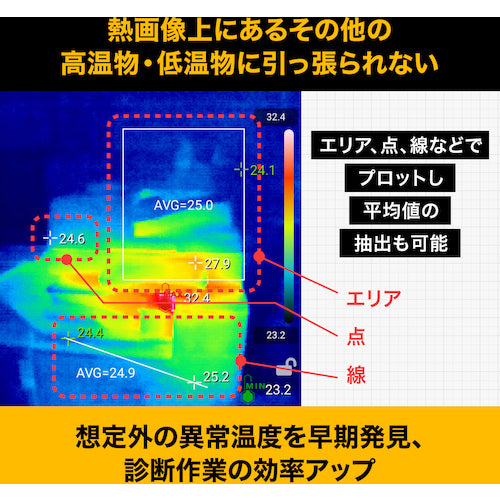

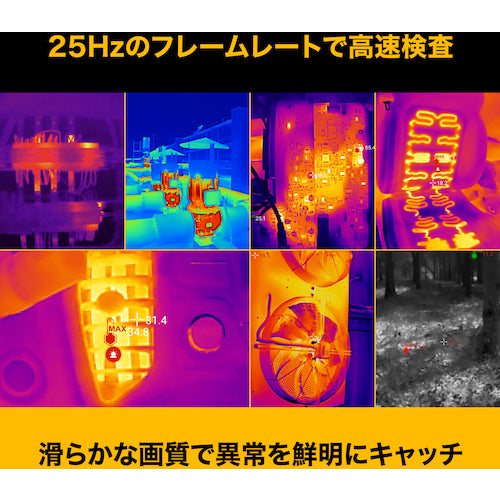

Catalog number: TC01A Features: ●Captures high and low temperatures in real time without missing any details. ●Professional thermal imaging software performs comprehensive temperature analysis of spots, lines and areas. ●Includes high and low temperature alarm function that notifies with sound and vibration. ●Automatic interval shooting is possible without the operator. Specifications: ● Measurement temperature range (℃): -10 to 150, 100 to 550 ● Minimum temperature display (℃): 0.1 ● Measurement field of view (°): 56 x 42 ● Spatial resolution (mrad): 3.81 ● Operating temperature range (℃): 0 to 40 ● Width (mm): 59 ● Depth (mm): 10 ● Height (mm): 32 ● Infrared resolution (pixels): 256 x 192 ● Temperature accuracy: ±2% of the reading or ±2 degrees, whichever is greater (when ambient temperature is 25 degrees ±5 degrees) ● Temperature measurement distance: 0.25m to 5m (-10 degrees to 10 degrees only applies to 0.25m to 3m) ● Frame rate: 25 Hz ● Temperature resolution (NETD): 0.05 degrees Set contents/accessories: ● Thermal camera (main unit) ● Packing box ● User's manual Note: ● Calibration: Fluke does not provide calibration services for this product.
