Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 10A (3/8) UBVNF-14C-BU-R 1 pc

Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 10A (3/8) UBVNF-14C-BU-R 1 pc

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥6,125
¥6,125
Sale Sold out
Shipping calculated at checkout.

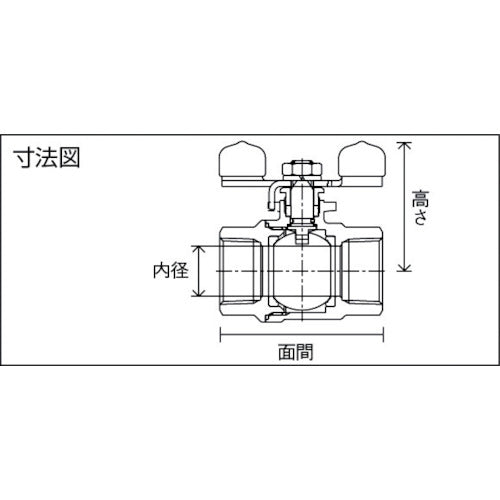

Catalog number: UBVNF-14C-BU-R Features: ●Butterfly handle type full bore type. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Height (mm): 45 ●Cv value max: 14.7 ●Face to face (mm): 58 ●Inner diameter (mm): 12.5 ●Full bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
