Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 25A (1) UBVNF-14F-R 1 piece

Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 25A (1) UBVNF-14F-R 1 piece

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥11,616
¥11,616
Sale Sold out
Shipping calculated at checkout.

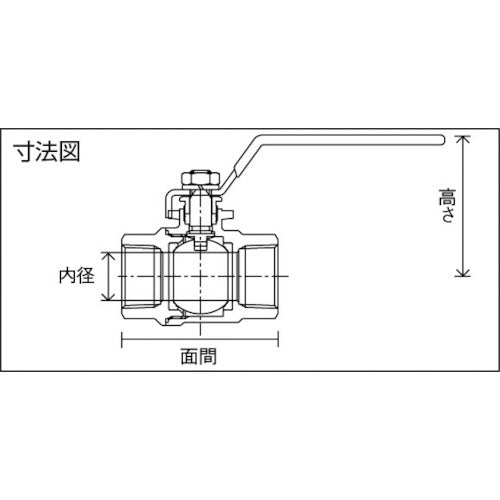

Catalog number: UBVNF-14F-R Features: ●Full bore type. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Height (mm): 65.5 ●Maximum Cv value: 62.6 ●Face to face (mm): 82 ●Inner diameter (mm): 25 ●Full bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
