Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 32A (1 1/4) UBVNF-14G-R 1 pc

Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 32A (1 1/4) UBVNF-14G-R 1 pc

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥17,318
¥17,318
Sale Sold out
Shipping calculated at checkout.

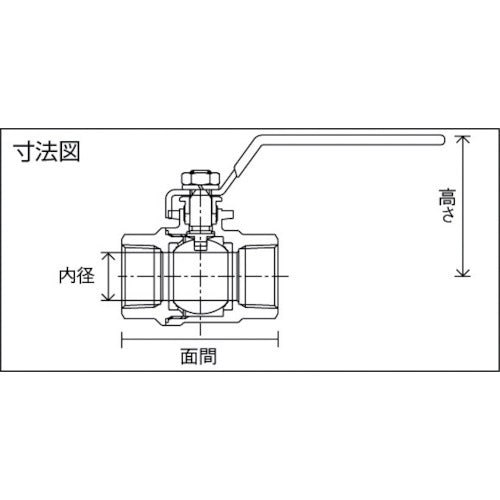

Catalog number: UBVNF-14G-R Features: ●Full bore type. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Height (mm): 70.5 ●Maximum Cv value: 111.7 ●Face to face (mm): 96.5 ●Inner diameter (mm): 32 ●Full bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
