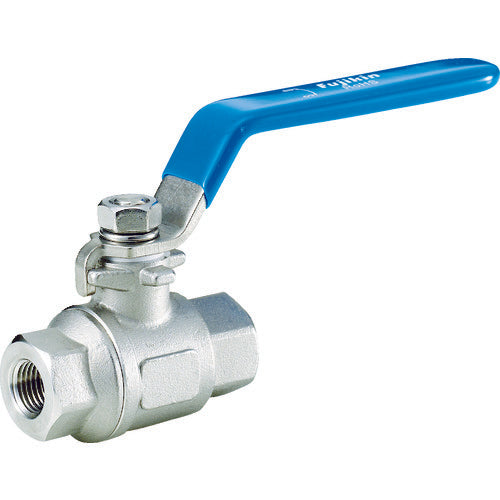

Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 8A (1/4) UBVNF-14B-R 1 pc

Fujikin Screw-in Ball Stainless Steel 3.92MPa Full Bore Type Ball Valve 8A (1/4) UBVNF-14B-R 1 pc

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥5,914
¥5,914
Sale Sold out
Shipping calculated at checkout.

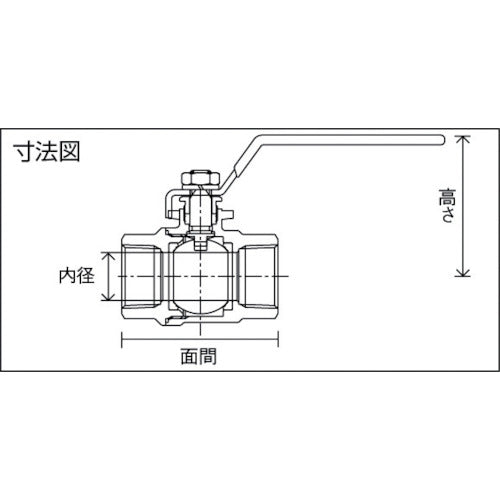

Catalog number: UBVNF-14B-R Features: ●Full bore type. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 8 ●Nominal diameter B: 1/4 ●Height (mm): 53.5 ●Maximum Cv value: 12.9 ●Face to face (mm): 58 ●Inner diameter (mm): 11 ●Full bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
