Fujikin Stainless Steel 3.92MPa Reduced Bore Type Ball Valve 20A UBVN-14E-BU-R 1 pc

Fujikin Stainless Steel 3.92MPa Reduced Bore Type Ball Valve 20A UBVN-14E-BU-R 1 pc

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥3,696
¥3,696
Sale Sold out
Shipping calculated at checkout.

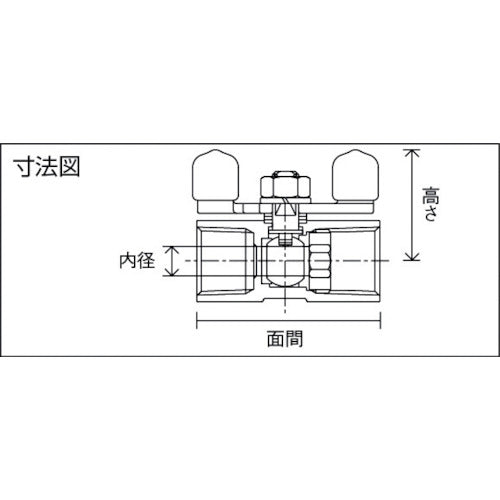

Catalog number: UBVN-14E-BU-R Features: ●Butterfly handle type reduced bore type. ●Lightweight and compact. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Height (mm): 38 ●Handle length D (mm): 3.92 ●Cv value max: 8.4 ●Face to face (mm): 59 ●Inner diameter (mm): 12.5 ●Reduced bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
View full details
