（株）フジキン

Fujikin Stainless Steel 3.92MPa Reduced Bore Type Ball Valve 50A (2) UBVN-14I-R 1 pc

Fujikin Stainless Steel 3.92MPa Reduced Bore Type Ball Valve 50A (2) UBVN-14I-R 1 pc

JAN： 　
Ball valve Construction and lighting supplies Fujikin Valve Pipework Equipment valve
¥13,622
¥13,622
Sale Sold out
Shipping calculated at checkout.

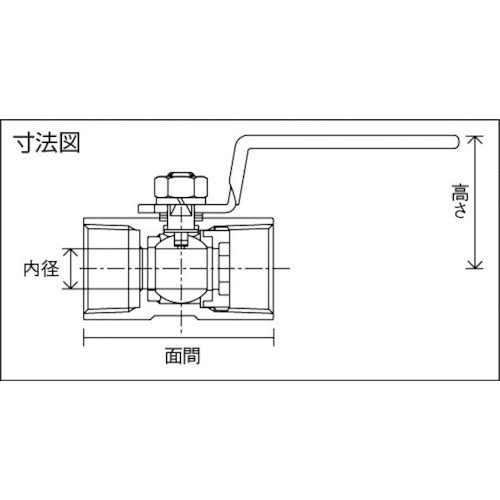

Catalog number: UBVN-14I-R Features: ●Reduced bore type. ●Lightweight and compact. Applications: ●For water, air, and gas. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●Height (mm): 72 ●Handle length D (mm): 3.92 ●Cv value max: 55.4 ●Face to face (mm): 100 ●Inner diameter (mm): 32 ●Reduced bore type ●Maximum pressure 3.92 MPa (at 40°C static air flow) Material/Finish: ●Stainless steel (SCS14A)
View full details
