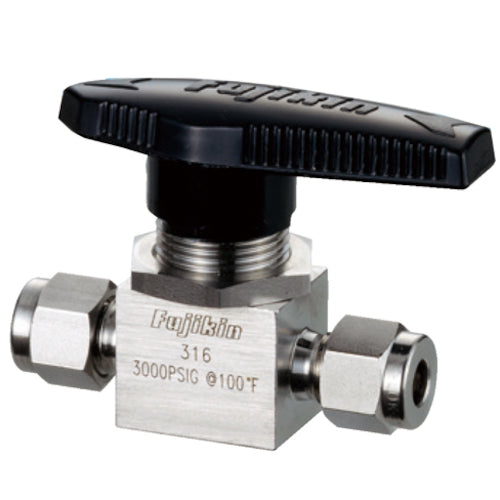

Fujikin Stainless Steel Ball Valve 20.6MPa VUBVS-920P VUBVS-920P-6.35-SV 1 pc

Catalog number: VUBVS-920P-6.35-SV Features: ●Integrated seat reduces leak points. ●Gland disc spring structure self-compensates for seat wear. ●Integrated body for compact size. ●Fully open/close with 1/4 turn. ●Panel mounting possible. Applications: ●For closing various gas and liquid lines Specifications: ●Nominal diameter A: 6.35 ●Nominal diameter B: 6.35 ●Total length (mm): 56.1 ●Height (mm): 34.5 ●Handle length D (mm): 47.4 ●Maximum allowable pressure (MPa): 17.2 ●Operating temperature range (℃): -53 to 148 ●Made of stainless steel Body material: ASTM A479 316 Material/Finish: ●Made of stainless steel Body material: ASTM A479 316
