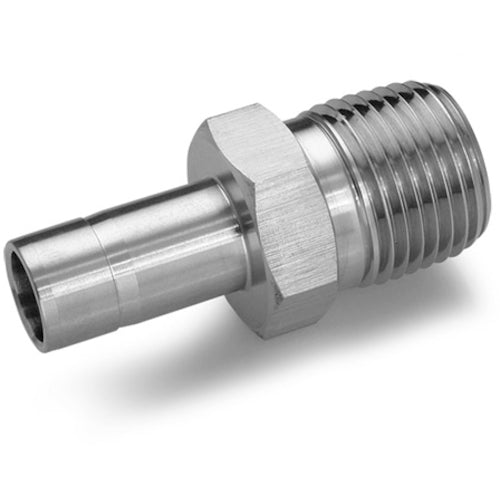

Fujikin New V-Lok 2 compression ring bite type stainless steel VUW-A-9.52CV 1 piece

Catalog number: VUW-A-9.52CV Features: ●Compression ring type fitting where the tube is inserted and the nut is tightened. No special tools or fire are required, and it can be repeatedly attached and detached. ●The tube connector can be connected by simply inserting the tube and tightening the nut, so no special tools or fire are required. Applications: ●For petroleum and petrochemical, general industrial processes, and instrumentation. Specifications: ●Applicable pipe outer diameter T (mm): 9.52XR3/8 ●Hexagonal face size (mm): 17.5 ●Dimension A (mm): 39.6 ●Maximum operating pressure (MPa): ●Maximum operating pressure (MPa): Depends on tube diameter (φ6.35 wall thickness 0.89: 35.8MPa) ●Liquid temperature (℃): -196 to 537 ●●Stainless steel Body material: ASTM A479 316
