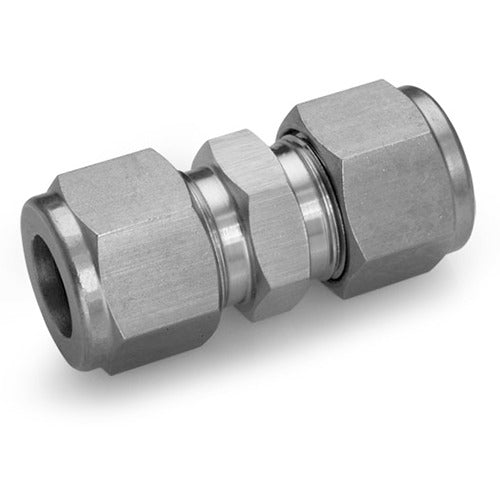

Fujikin New V-Lok 2 compression ring bite type Stainless steel VUWF-6-V 1 piece

Catalog number: VUWF-6-V Features: ●Compression ring type fitting where the tube is inserted and the nut is tightened. No special tools or fire are required, and it can be repeatedly attached and detached. ●The tube connector can be connected by simply inserting the tube and tightening the nut, so no special tools or fire are required. ●In addition, the unique interlocking action of the double ring effectively plastically deforms the ring and firmly compresses the tube, resulting in extremely high pressure resistance. Applications: ●For petroleum and petrochemical, general industrial processes, and instrumentation. Specifications: ●Applicable pipe outer diameter T (mm): 6 ●Usable fluid: Inert gases such as air, nitrogen, and helium, as well as gases, liquids, and steam that do not corrode fitting parts. ●Fluid temperature (℃): -196 to 537 ●Usable pressure (MPa): 35.8 ●Dimensions (mm) A: 41.0 Material/Finish: ●Stainless steel
