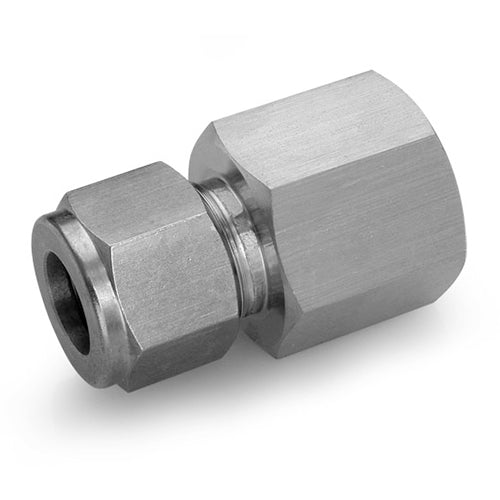

Fujikin New V-Lok 2 compression ring bite type Stainless steel VUWG-6.35BV 1 piece

Catalog number: VUWG-6.35BV Features: ●Compression ring type fitting where tube is inserted and nut is tightened. No special tools or fire are required, and it can be repeatedly attached and detached. ●Tube connector can be connected by simply inserting tube and tightening nut, so no special tools or fire are required. Applications: ●Petroleum and petrochemical, general industrial process, instrumentation. Specifications: ●Applicable pipe outer diameter T (mm): 6.35XRc1/4 ●Hexagonal face (mm): 19.1 ●Dimension A (mm): 35.9 ●Maximum operating pressure (MPa): ●Maximum operating pressure (MPa): depends on tube diameter (φ6.35 wall thickness 0.89: 35.8MPa) ●Liquid temperature (℃): -196 to 537 ●●Stainless steel Body material: ASTM A479 316
