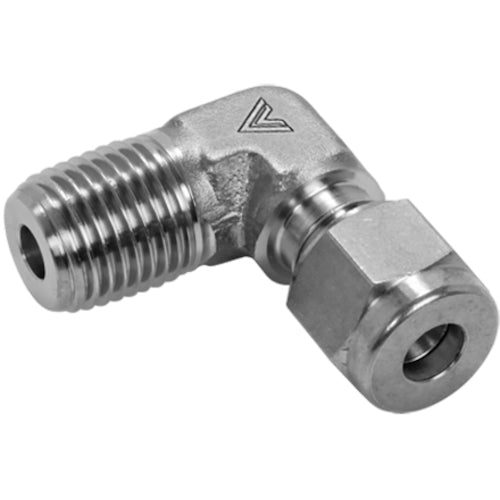

Fujikin New V-Lok 2 compression ring bite type Stainless steel VUWL-6C-V 1 piece

Catalog number: VUWL-6C-V Features: ●Compression ring type joint where the tube is inserted and the nut is tightened. No special tools or fire are required. Can be repeatedly attached and detached. ●The tube connector can be connected simply by inserting the tube and tightening the nut, so no special tools or fire are required. ●In addition, the unique interlocking action of the double ring allows the ring to effectively plastically deform and firmly compress the tube, resulting in extremely high pressure resistance. Applications: ●For petroleum/petrochemical, general industrial processes, and instrumentation. Specifications: ● Applicable pipe outer diameter T (mm): 6XR3/8 ● Hexagonal side (mm): 17.5 ● Dimension A (mm): 29.8 ● Maximum operating pressure (MPa): ● Maximum operating pressure (MPa): Depends on tube diameter (φ6.35 wall thickness 0.89: 35.8MPa) ● Liquid temperature (℃): -196 to 537 ● Dimension (mm) A: 29.8 ● Thread: R3/8 ● Dimension (mm) C: 26.2 ● ● Stainless steel Body material: ASTM A182 F316 ● Fluid temperature (℃): -196 to 537℃ ● Operating pressure: 35.8MPa Material / Finish: ● Stainless steel
