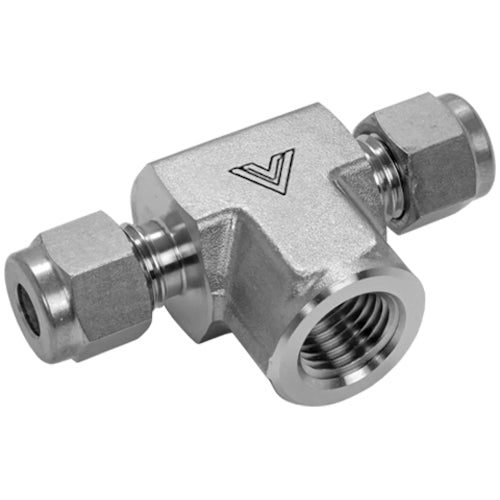

Fujikin New V-Lok 2 compression ring bite type Stainless steel VUWTG-6B-V 1 piece

Catalog number: VUWTG-6B-V Features: ●Compression ring type fitting where the tube is inserted and the nut is tightened. No special tools or fire are required, and it can be repeatedly attached and detached. ●The tube connector can be connected by simply inserting the tube and tightening the nut, so no special tools or fire are required. Applications: ●For petroleum and petrochemical, general industrial processes, and instrumentation. Specifications: ●Applicable pipe outer diameter T (mm): 6X6XRc1/4 ●Hexagonal face size (mm): 20.6 ●Dimension A (mm): 59.6 ●Maximum operating pressure (MPa): ●Maximum operating pressure (MPa): Depends on tube diameter (φ6.35 wall thickness 0.89: 35.8MPa) ●Liquid temperature (℃): -196 to 537 ●●Stainless steel Body material: ASTM A182 F316
