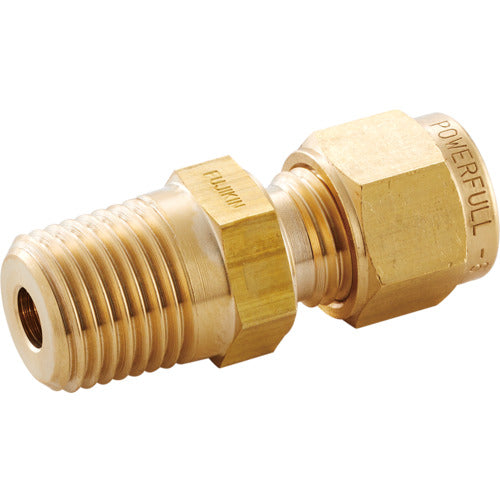

Fujikin Brass Powerful Lock Fitting 4.9MPa PDW PDWH-10C-R 1 pc

Catalog number: PDWH-10C-R Features: ●Compression ring type fitting where tube is inserted and nut is tightened. ●No special tools or fire required. ●Can be repeatedly attached and detached. ●For copper pipes. Applications: ●Various plant instrumentation air, oil lines, etc. ●For copper pipes. Specifications: ●Applicable pipe outer diameter T (mm): PDW fitting 10mm x threaded R3/8 ●Hexagonal face (mm): 19 ●Dimension A (mm): 40.7 ●Maximum operating pressure (MPa): 4.9 ●Liquid temperature (℃): -45 to 200 ●Cleanliness: Non-oil-free Material/Finish: ●Brass Body material: C3604B
