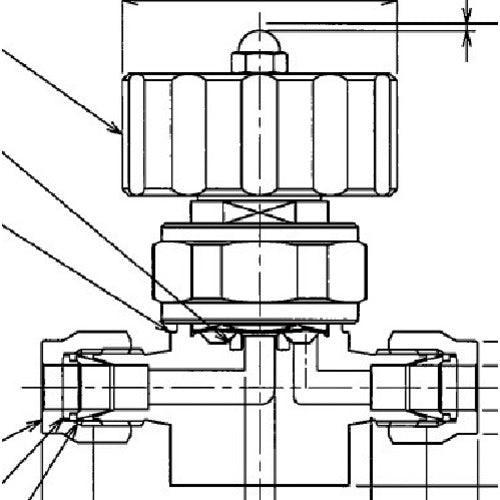

Fujikin SUS steel direct diaphragm valve 1MPa FUND-91G FUND-91G-6.35 1 unit

Catalog number: FUND-91G-6.35 Features: ● Metal diaphragm structure provides high airtightness, high durability, compactness, and dead space free Applications: ● For ultra-high purity gas and flammable, toxic gas lines in semiconductor manufacturing equipment Specifications: ● Nominal diameter A: F900 fitting 6.35mm ● Nominal diameter B: F900 fitting 6.35mm ● Overall length (mm): 62 ● Height (mm): 53 ● Handle length D (mm): 40 ● Maximum allowable pressure (MPa): 1 ● Operating temperature range (℃): -10 to 80 ● Cv value max: 0.3 ● Cleanliness: Special grade oil-free ● Inner surface treatment: Electrolytic polishing ● Operation type: Manual Material/Finish: ● Stainless steel Body material: SUS316L
