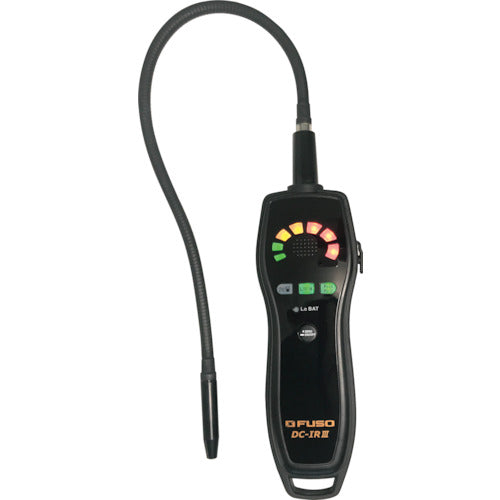

FUSO Refrigerant gas detector DC-IR3 1 unit

Catalog number: DC-IR3 Features: ● Extremely high performance, world-class high standard model. ● Passed leak tests of world standards. ● Uses a non-dispersive infrared sensor with high selectivity and few false reactions. ● Achieves maximum sensitivity of 2g/year. ● Waterproof structure equivalent to IPX3. ● A smart 400mm flexible probe allows detection even in narrow spaces. ● Accurately responds to R32, R1234yf, and R1234ze. ● Four levels of sensitivity can be switched. ● Equipped with a long-life lithium-ion battery (approximately 8 hours of continuous use). ● Can be switched to vibration mode or silent mode when detection occurs. Applications: ● For leak checks of refrigerant gas in air conditioning equipment, refrigeration and freezing equipment, car air conditioners, etc. ● For airtightness checks using refrigerant as a tracer gas. ● For checking the presence or absence of residual steam during operation of a cleaning machine using fluorocarbon solvents, and for checking for leaks of fluorocarbon solvents from the cleaning machine. Specifications: ●Target gases: R22, R502, R134A, R404A, R407C, R410A, R32, R1234yf, R1234ze, R448a ●Width (mm): 65 ●Depth (mm): 35 ●Height (mm): 240 ●Detection sensitivity: Turbo mode: 2g/year, H mode: 4g/year, M mode: 7g/year, L mode: 14g/year ●Warm-up time: 30 seconds ●Response time: 0.5 seconds ●Power source: Lithium-ion rechargeable battery (built-in) Material/Finish: ●Main unit: Plastic Set contents/Accessories: ●AC adapter (100-240VAC) x 1 ●Car cigarette lighter charging adapter x 1 ●Check leak x 1 ●Filter x 10 sheets ●Replacement O-ring x 1 ●Hard carrying case ●Instruction manual ●Warranty card
