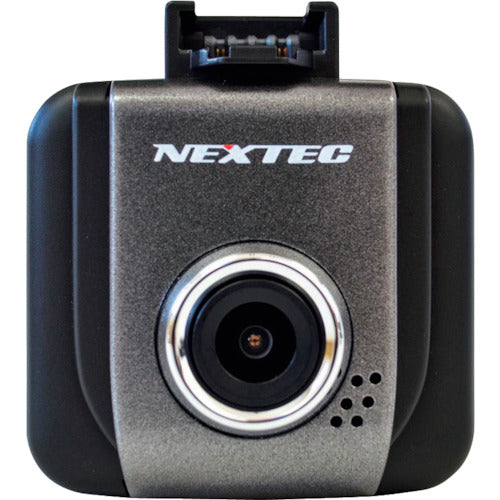

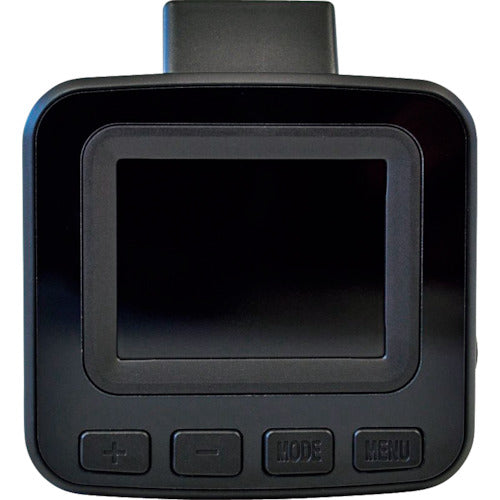

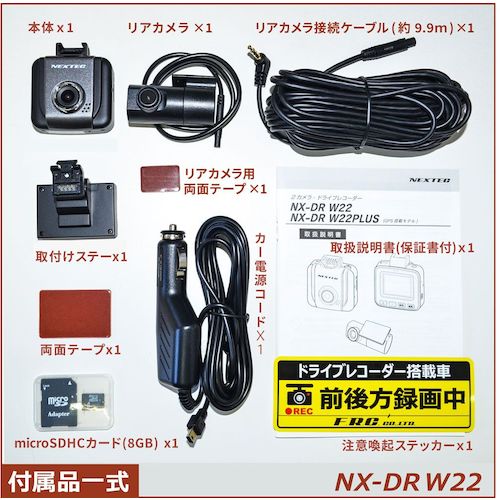

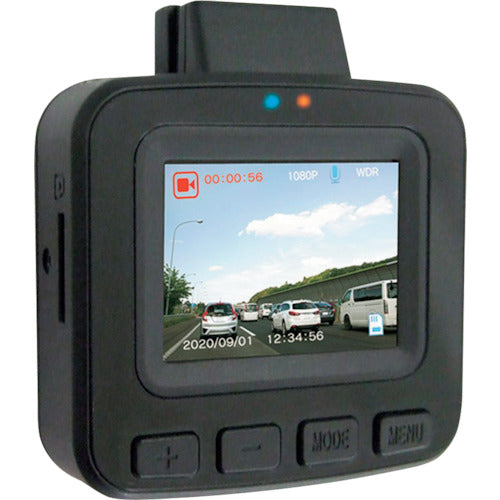

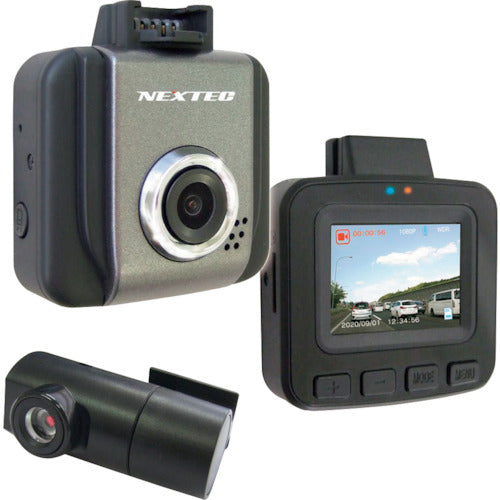

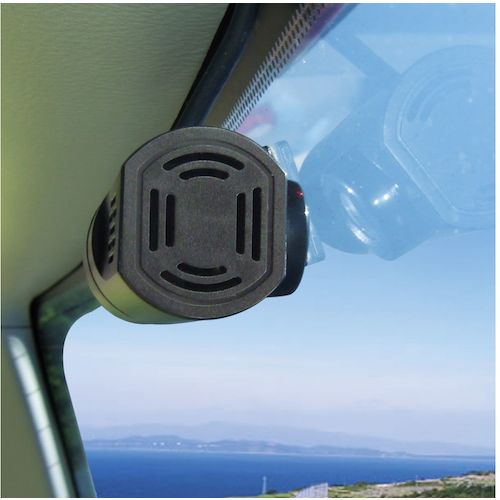

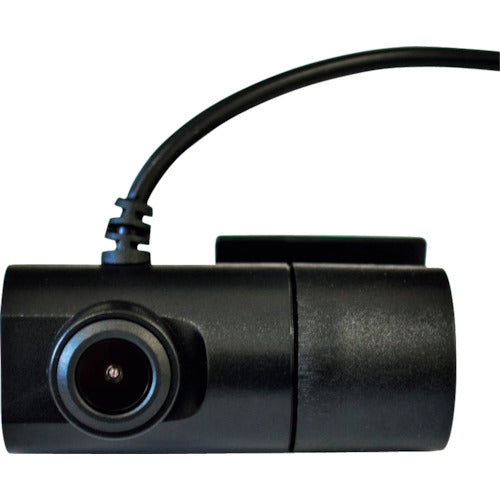

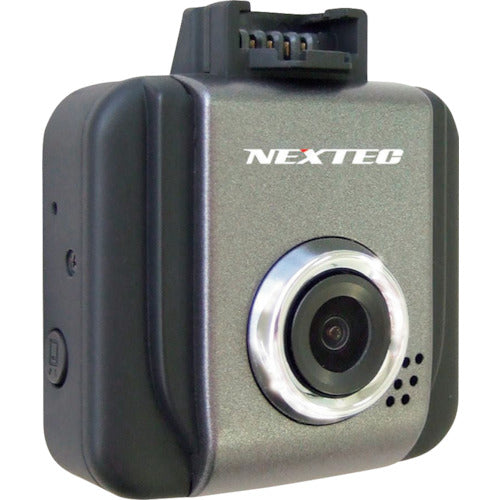

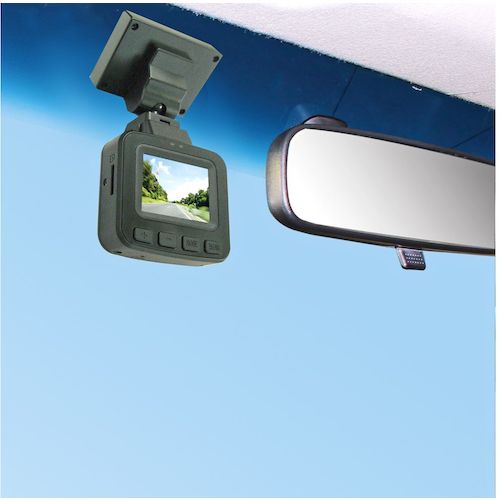

Catalog number: NX-DR W22(W) Features: ●An ultra-compact, lightweight model with two front and rear cameras and a 1.5-inch LCD. ●The connection cable for the rear camera is approximately 10m long, which is plenty even for a minivan. ●Equipped with a G sensor (shock sensor) and audio ON/OFF function, as well as a WDR function for image correction. ●Uses a highly durable supercapacitor for the backup power supply. ●Made in Japan at our own factory in Shizuoka Prefecture, so you can purchase with confidence. Uses: ●For those looking for a compact Japanese-made drive recorder. Specifications: ● Power supply (V): DC12/24 ● Input voltage (V): DC5 ● Number of pixels: Front) 2 million Rear) 1 million ● Monitor size (inches): 1.5 ● Width (mm): 54 ● Depth (mm): 24 ● Height (mm): 50 ● Included SD card (GB): 8 ● Viewing angle (°): <Front camera> Horizontal: 115, Vertical: Approximately 60, Diagonal: 140 <Rear camera> Horizontal: 105, Vertical: Approximately 60, Diagonal: 120 ● Power consumption: Approximately 320mA (at DC12V) / Approximately 170mA (at DC24V) ● Recording file composition (min): 1/3/5 ● Recording medium: microSDHC (8GB included) / Compatible with 4 to 32GB (Class10 or higher) ● Video file format: Video MOV (H.264) ● Image correction: WDR ● Frame rate: [Front camera] 27.5fps [Rear camera] Approx. 25 fps●Backup power supply: Supercapacitor type/button rechargeable battery (for clock)●G sensor: Yes (off, low, medium, high) 3-stage adjustment●Product warranty period: 1 year (excluding consumables such as microSDHC cards)●Recording method: Continuous recording (continuous shooting), event recording (G sensor, manual)●Audio: Can be turned on/offSet contents/accessories:●Mounting bracket x 1●Double-sided tape for bracket fixing x 1●Rear camera (cord length: approx. 0.5 m) x 1●Rear camera connection cable (approx. 9.9 m) x 1●Double-sided tape for fixing the rear camera x 1●Cigarette lighter power cord (approx. 3.5 m) x 1●microSDHC card (8 GB) x 1●Instruction manual (with warranty) x 1 Note:●This unit has a built-in rechargeable battery.●It is designed to last for approximately 2 years when used twice a day for about 15 minutes each time.●When the battery reaches the end of its life, it will need to be replaced (for a fee). ●Recording media such as SD/SDHC/microSDHC have a lifespan and are consumables.
