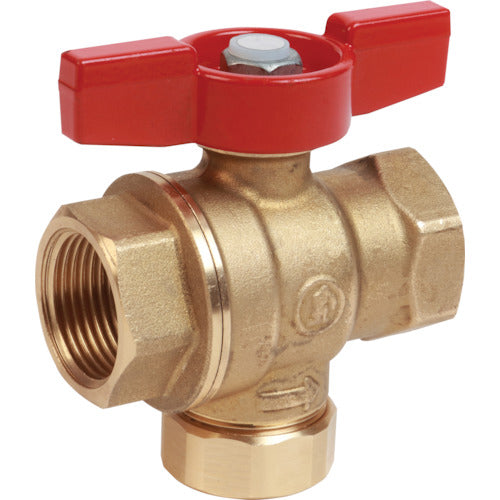

GIACOMINI Ball Valve (with strainer) Female x Female 1/2 R701FY113 1 pc

Catalogue number: R701FY113 Features: ● A type with a ball valve and strainer integrated, realizing space saving. ● Functions as one filter and two stop valves. ● Valve cleaning is easy, just loosen the cap and remove the filter. Applications: ● For cold and hot water equipment piping. Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Total length (mm): 57.3 ● Height (mm): 41 ● Handle length D (mm): 63 ● Maximum allowable pressure (MPa): 3.2 ● Operating temperature range (℃): 5 to 110 Material/Finish: ● Brass
