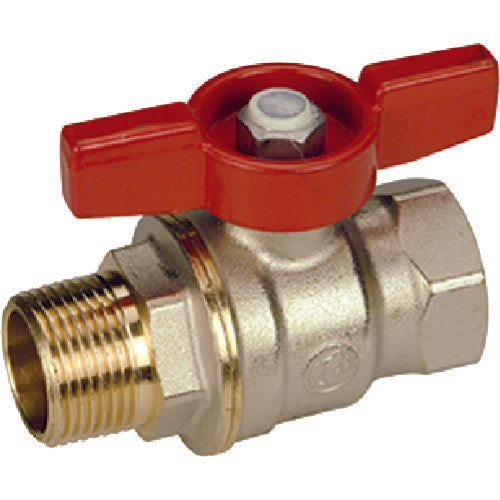

Catalog number: R914X025 Use: For steam, cold and hot water equipment piping. Specifications: Nominal diameter A: 25 Nominal diameter B: 1 Total length (mm): 87 Height (mm): 47 Handle length D (mm): 73 Maximum allowable pressure (MPa): 3.5 Operating temperature range (℃): -20 to 185 Material/Finish: Brass
