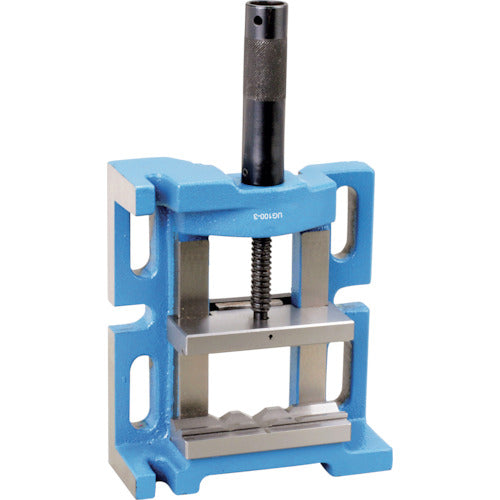

GROZ Drill Press Vise, 3-way compatible, mouth width 100mm, DPV/UG/3/100, 1 unit
GROZ Drill Press Vise, 3-way compatible, mouth width 100mm, DPV/UG/3/100, 1 unit
Regular price
¥24,119
Regular price
Sale price
¥24,119
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

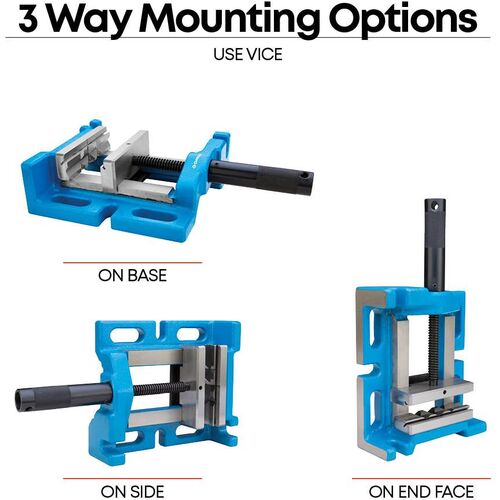

Catalog number: DPV/UG/3/100 Features: ● Strong clamping force due to the strong body. ● Can be used in three directions (lying, standing, standing sideways). ● Can be tightened by turning the handle by hand. ● For stronger tightening, insert a metal rod into the handle and turn it to tighten more strongly (pin not included). Specifications: ● Total length (mm): 158 ● Width (mm): 183 ● Height (mm): 35 ● Jaw width (mm): 100 ● Jaw opening (mm): 100 ● Jaw depth (mm): 30 ● Clamping pressure (kN): 2 Material/Finish: ● Body: Cast iron ● Jaw: Tool steel Caution: ● Jaw cannot be replaced.
