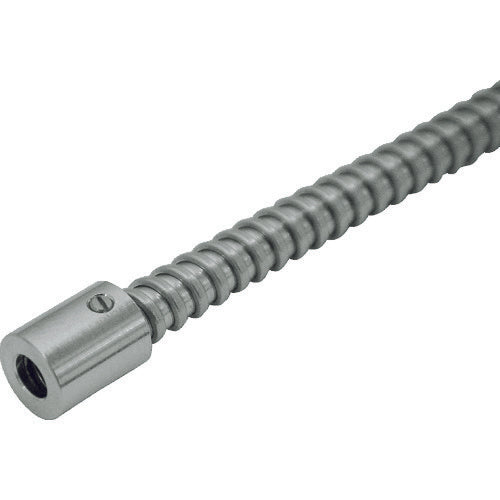

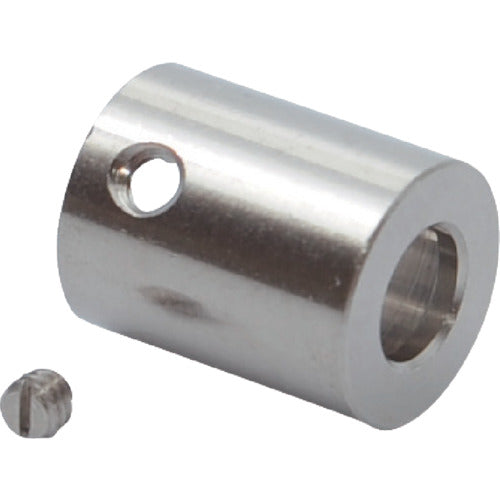

HAGI End Cap 4mm KBS-4 1 piece

Catalog number: KBS-4 Features: ● Cap for casing tube terminal processing. ● Screw-on type, screw the connector into the tube and secure with a screw. ● Prevents optical fiber and cables from being damaged by the cut end of the tube. ● RoHS compliant. Applications: ● As a tube terminal connector for protecting sensors, for the extraction parts of measuring instruments, sensor equipment, robots, amusement equipment, etc. Specifications: ● Color: Silver ● Spanner size (mm): 8 ● Length (mm): 10 ● Type: End cap ● Outer diameter (mm): 8 ● Length (mm): 10 ● Screw size (mm): M2 x 2L: [-] ● Opening (mm): φ4 ● Compatible tube: KS-4N Material/Finish: ● Brass (LCD material) ● Surface treatment: Electroless nickel plating
