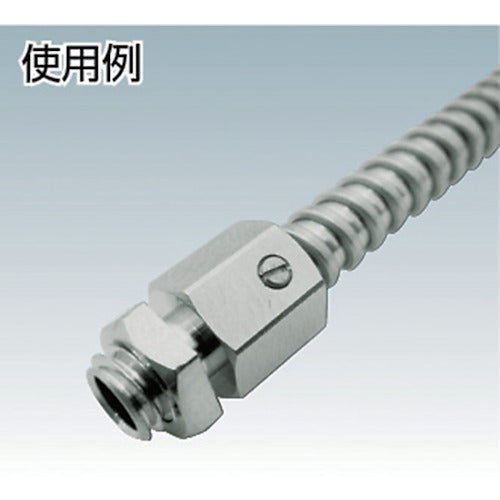

HAGI Panel Connector 5mm KPB-5 1 piece

Catalog number: KPB-5 Features: ● Cap for tube terminal processing for panels and boxes. ● Screw-on type, screw the connector into the tube and secure with a screw. ● Prevents damage to optical fibers and cables by the cut end of the tube. ● RoHS compliant. Applications: ● As a tube terminal connector for protecting sensors, for the extraction parts of measuring instruments, sensor equipment, robots, amusement equipment, etc. Specifications: ● Color: Silver ● Mounting screw: M8x0.75 ● Height (mm): 14 ● External dimensions (opposite sides) (mm): 9 ● Length (mm): 14 ● Screw size (mm): M2 x 2.0L: [-] ● Opening (mm): 5.0 ● Screw size (mm): M8 x 0.75 ● Compatible tube: KS-5N Material/Finish: ● Brass (LCD material) ● Surface treatment: Electroless nickel plating
