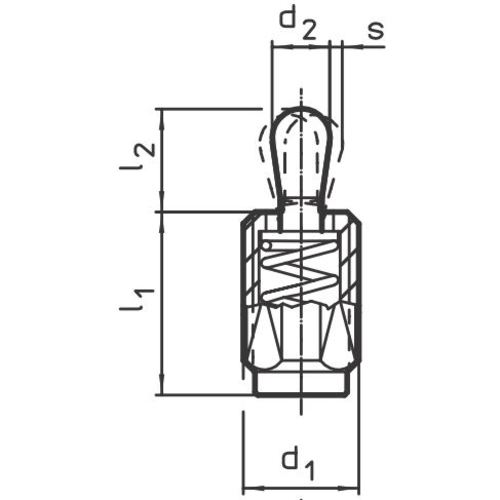

Catalogue number: 22150.0380 Features: ●Used for simple fixing of thin, lightweight parts. ●Presses the processed product laterally to position it. ●Easy to install and does not take up space. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. ●For lateral positioning of lightweight workpieces. Specifications: ●d2(mm): 6 ●l2(mm): 10.7 ●d1(mm): M12 ●l1(mm): 19 ●+/-F: Pin displacement (mm): +/-1.0 ●K: Tool clearance (mm): 3.5 x 60° ●P: Clamping force (N): 40 ●Spring force ma x (N): 40 ●Face width (mm): 10 ●Thread length (mm): 19 ●Stroke (mm): 2.0 ●Threaded mounting ●No seal Material/Finish: ●Body: Steel, zinc plated ●Pin: Steel (22150.0335), Plastic (22150.0380)
