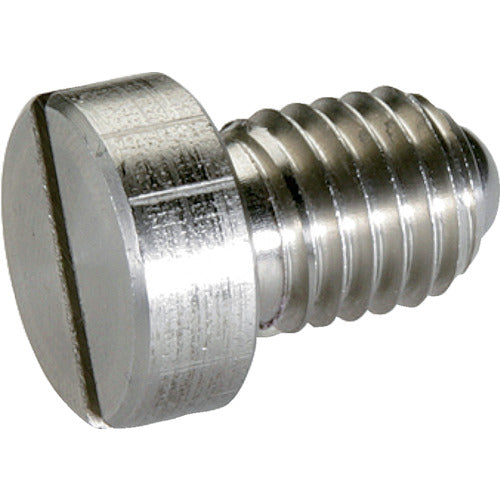

HALDER Spring Plunger with Ball, Head and Slot Stainless Steel 22050.0941 1 piece

Catalogue number: 22050.0941 Features: ● Ball type plunger with head. ● Since it has a head, the screw-in depth can be determined. Applications: ● For positioning, fixing, pressing, pushing away, etc. Specifications: ● Load (N): 8 - 14 ● Thread size: M5 ● Stroke (mm): 0.9 ● Overall length (mm): 12.5 ● Pole diameter (mm): 3 ● Thread size: M5 ● Head diameter (mm): 8 ● Thread length (mm): 8.5 ● Spring force (N): approx. 8 to approx. 14 ● Slot talk (mm): 0.9 ● Spring pressure: Standard ● Maximum operating temperature: 250°C Materials/Finish: ● Body: Stainless steel 1.4305 (equivalent to SUS303) ● Ball: Stainless steel, hardened ● Spring: Stainless steel
