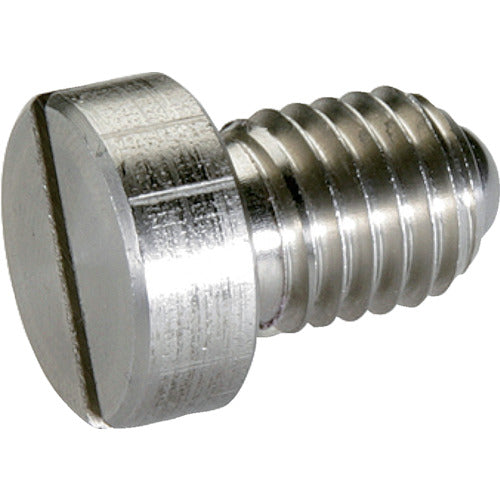

HALDER Spring Plunger with Ball, Head and Slot Stainless Steel 22050.0942 1 Piece

Catalogue number: 22050.0942 Features: ● Ball type plunger with head. ● Since it has a head, the screw-in depth can be determined. Applications: ● For positioning, fixing, pressing, pushing away, etc. Specifications: ● Load (N): 11 - 18 ● Thread size: M6 ● Stroke (mm): 1 ● Overall length (mm): 14 ● Pole diameter (mm): 3.5 ● Thread size: M6 ● Head diameter (mm): 10 ● Thread length (mm): 9 ● Spring force (N): approx. 11 to approx. 18 ● Slot talk (mm): 1 ● Spring pressure: Standard ● Maximum operating temperature: 250°C Materials/Finish: ● Body: Stainless steel 1.4305 (equivalent to SUS303) ● Ball: Stainless steel, hardened ● Spring: Stainless steel
