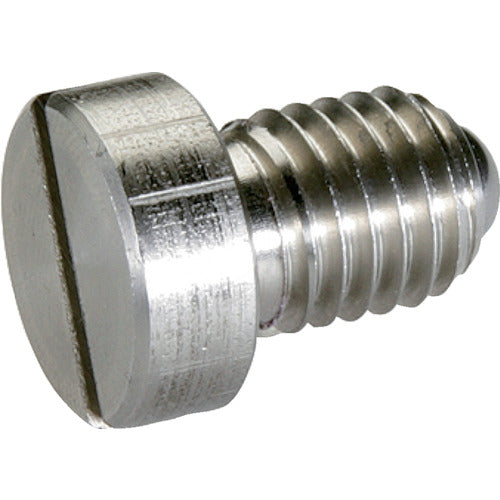

HALDER Spring Plunger with Ball, Head and Slot Stainless Steel 22050.0943 1 Piece

Catalogue number: 22050.0943 Features: ● Ball type plunger with head. ● With head, the screw-in depth can be determined. Applications: ● Positioning, fixing, pressing, pushing away, etc. Specifications: ● Load (N): 18 - 31 ● Thread size: M8 ● Stroke (mm): 1.5 ● Overall length (mm): 16.5 ● Pole diameter (mm): 4.5 ● Thread size: M8 ● Head diameter (mm): 13 ● Thread length (mm): 11 ● Spring force (N): approx. 18 to approx. 31 ● Slot talk (mm): 1.5 ● Spring pressure: Standard ● Maximum operating temperature: 250°C Materials/Finish: ● Body: Stainless steel 1.4305 (equivalent to SUS303) ● Ball: Stainless steel, hardened ● Spring: Stainless steel
