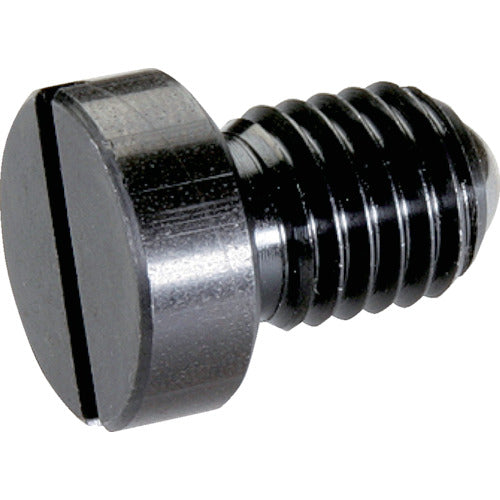

HALDER Spring Plunger with Ball, Head and Slot Free Cutting Steel 22050.0931 1 piece

Catalogue number: 22050.0931 Features: ● Ball plunger with head. ● Since it has a head, the screw-in depth can be determined. Applications: ● For positioning, fixing, pressing, pushing away, etc. Specifications: ● Stroke (mm): 0.9 ● Overall length (mm): 12.5 ● Pole diameter (mm): 3 ● Screw size: M5 ● Head diameter (mm): 8 ● Screw length (mm): 8.5 ● Spring force (N): Approximately 8 to approximately 14 ● Spring pressure: Standard ● Maximum operating temperature: 250°C Materials/Finish: ● Body: Free-cutting steel, blackened ● Ball: Bearing steel, hardened ● Spring: Stainless steel
