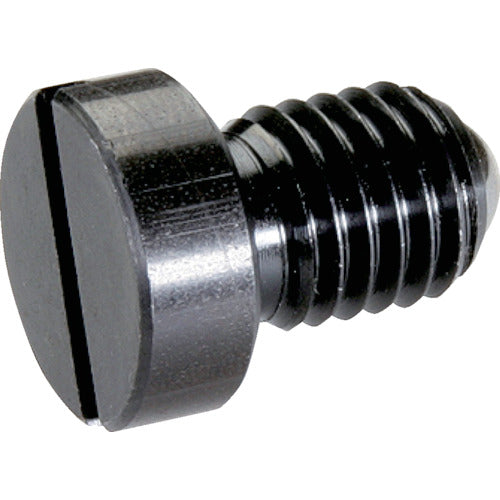

HALDER Spring Plunger with Ball, Head and Slot Free Cutting Steel 22050.0935 1 Piece

Catalogue number: 22050.0935 Features: ● Ball plunger with head. ● Since it has a head, the screw-in depth can be determined. Applications: ● For positioning, fixing, pressing, pushing away, etc. Specifications: ● Stroke (mm): 2.5 ● Overall length (mm): 22 ● Pole diameter (mm): 8 ● Thread size: M12 ● Head diameter (mm): 18 ● Thread length (mm): 15 ● Spring force (N): Approximately 26 to approximately 49 ● Spring pressure: Standard ● Maximum operating temperature: 250°C Materials/Finish: ● Body: Free-cutting steel, blackened ● Ball: Bearing steel, hardened ● Spring: Stainless steel
