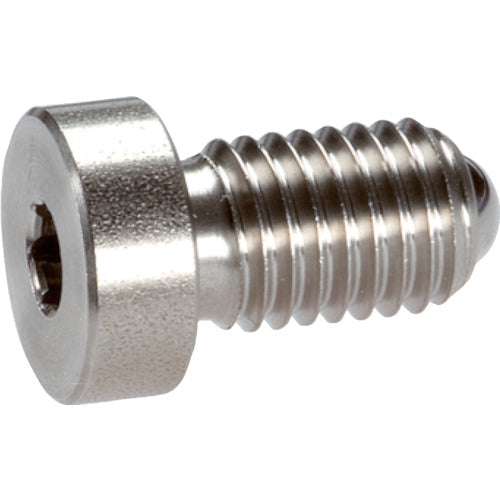

HALDER Spring Plunger Ball, Head, Hexagonal Socket Stainless Steel 22030.0940 1 piece

Catalogue number: 22030.0940 Features: ●Hexagonal hole, ball type plunger. ●With head, the screw-in depth can be determined. Applications: ●For positioning, fixing, pressing, pushing away, etc. Specifications: ●Total length (mm): 12 ●Pole diameter (mm): 2.5 ●Pin diameter: M4 ●Head diameter (mm): 6 ●Pin length (mm): 9 ●Spring force (N): approx. 8-approx. 14 ●Slot talk (mm): 0.8 ●Two-face width (mm): 2 ●Max. temperature (℃): 250 ●Spring pressure: Standard Material/Finish: ●Body: Stainless steel 1.4305 (equivalent to SUS303) ●Ball: Stainless steel, hardened ●Spring: Stainless steel
