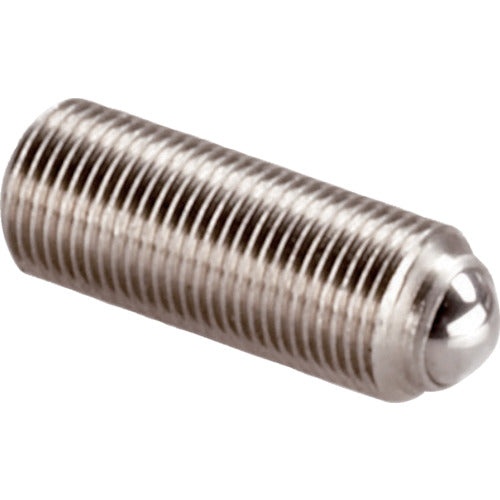

HALDER Setting Screw Fine Thread Full Ball Stainless Steel 22720.6062 1 Piece

Catalogue number: 22720.6062 Features: ● Headless, full ball setting screw. ● Fine thread allows fine adjustment. ● Applications: ● For fixing, tightening, support, etc. even when not perpendicular to the workpiece. Specifications: ● Load (N): 9000 ● Thread dimensions: M6x0.5 ● Total length (mm): 16.8 ● Hexagonal two-sided width (mm): 3 ● Pole diameter (mm): 4 ● External diameter d1 (mm): M6×0.5 ● Total length l1 (mm): 16.8 ● Maximum load capacity (static load kN): 9 ● Full ball Material/Finish: ● Ball: Stainless steel, hardened ● Screw: Stainless steel 1.4305 (equivalent to SUS303)
