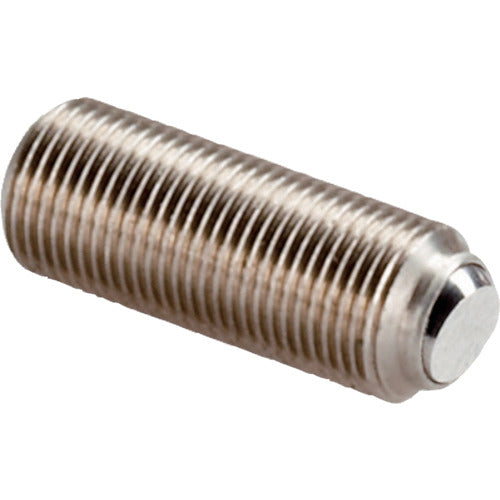

HALDER Setting Screw Fine Thread Flat Ball Stainless Steel 22720.6261 1pc

Catalogue number: 22720.6261 Features: ● Headless setting screw with chamfered ball. ● The flat surface of the movable ball always maintains surface contact with the workpiece. ● Fine thread allows fine adjustments. ● Applications: ● For fixing, tightening, and support even when not perpendicular to the workpiece. Specifications: ● Outer diameter d1 (mm): M6 x 0.5 ● Total length l2 (mm): 12 ● Maximum load capacity (static load kN): 9 ● Flat ball ● No serrations Material/Finish: ● Ball: Stainless steel, hardened ● Screw: Stainless steel 1.4305 (equivalent to SUS303)
