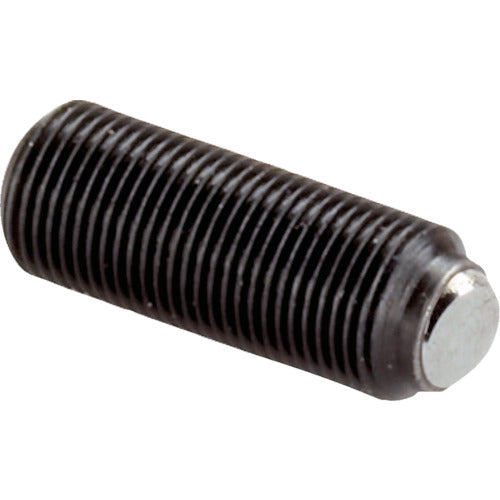

HALDER Setting Screw Fine Thread Flat Ball Heat Treated Steel 22720.5252 1pc

Catalogue number: 22720.5252 Features: ●Setting screw with flat ball. ●Fine thread allows fine adjustment. ●Flat ball● Applications: ●For fixing, tightening, support, etc. even when not perpendicular to the workpiece. Specifications: ●Total length (mm): 11.5 ●Ball diameter (mm): 3.0 ●Hexagon two-sided width (mm): 2.5 ●Outer diameter d1 (mm): M5 x 0.5 ●Total length l2 (mm): 11.5 ●Load capacity max. (static load kN): 4.5 ●Hexagon socket ●Fine thread ●Maximum operating temperature: 250°C ●Maximum oscillation angle: 9° (contact surface) ●No serrations Material/Finish: ●Ball: Bearing steel, hardened ●Body: Heat-treated steel
