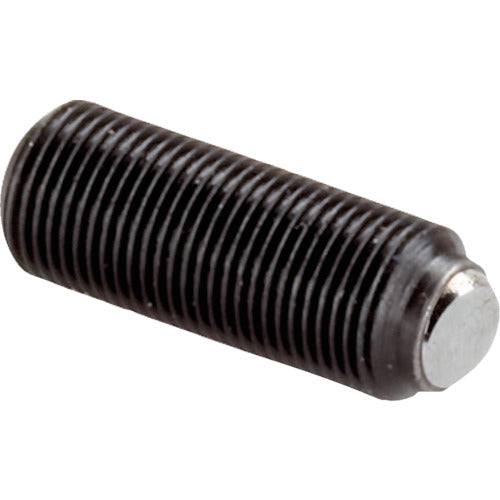

HALDER Setting Screw Fine Thread Flat Ball Heat Treated Steel 22720.5264 1pc

Catalogue number: 22720.5264 Features: ●Headless setting screw with chamfered ball. ●The flat surface of the movable ball always maintains surface contact with the workpiece. ●Fine thread allows for fine adjustments. ●Applications: ●Fixing, tightening, support, etc. even when not perpendicular to the workpiece. Specifications: ●Total length (mm): 25 ●Ball diameter (mm): 4.0 ●Hexagonal two-sided width (mm): 3.0 ●Outer diameter d1 (mm): M6 x 0.5 ●Total length l2 (mm): 25 ●Load capacity max. (static load kN): 9 ●Flat ball ●No serrations Material/Finish: ●Ball: Bearing steel, hardened ●Body: Heat-treated steel, 1200 ±100 N/mm2
