HALDER Socket Pin with Spring Pressure Ball Pin diameter 12 Maximum work thickness 50 22400.0128 1 pc

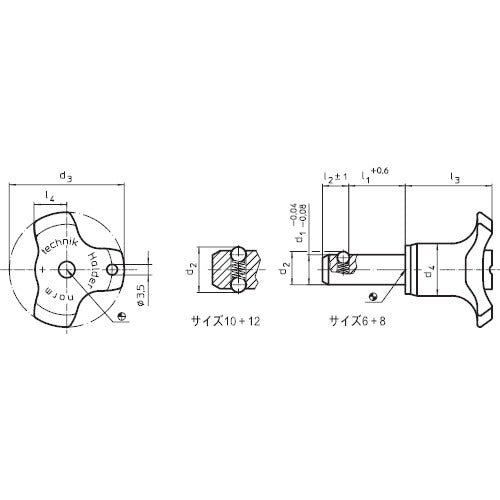

Catalogue number: 22400.0128 Features: ● Quickly secures, locks, replaces and positions parts and processed products. ● Ideal for areas where attachment and detachment are repeated frequently. ● Corrosion resistant. ● Easy-to-use grip. ● Unlike ball lock pins, this product does not have a locking mechanism. Applications: ● Ideal for areas where attachment and detachment are repeated frequently. Specifications: ●Shear strength (kN): 90 ●d1: 12 ●d2: 14.5 ●d3: 38 ●l1: 50 ●l2: 9.5 ●l3: 28.6 ●l4: 10.8 ●Mounting hole H11: 12 ●Tensile load without lubrication (Nmax.): 32 ●d4: 17.3 ●Hole tolerance is H11 ●Operating temperature range: -30 to 80°C ●Can be fitted with holding cable EH22400. Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Grip: Polyamide 6 (PA6) ●Spring: Stainless steel Note: ●Unlike the type with a spring behind the ball, the ball is not locked. The pin will come out if you pull it.
