HALDER Socket Pin with Spring Pressure Ball Pin diameter 8 Maximum workpiece thickness 15 22400.0084 1 piece

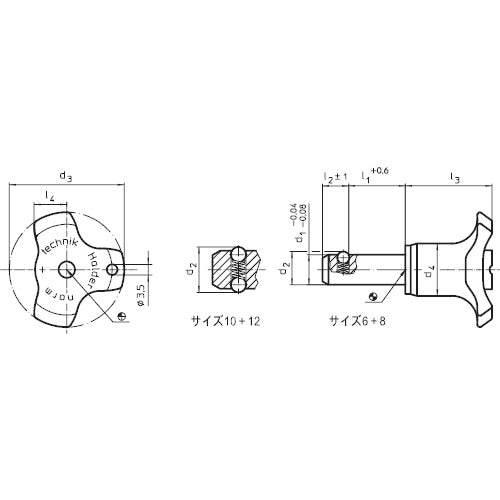

Catalogue number: 22400.0084 Features: * Quickly secures, locks, replaces and positions parts and processed products. * Ideal for areas where attachment and detachment are repeated frequently. * Corrosion resistant. * Easy-to-use grip. * Unlike ball lock pins, this product does not have a locking mechanism. Applications: * Ideal for areas where attachment and detachment are repeated frequently. Specifications: ●Shear strength (kN): 40 ●d1: 8 ●d2: 8.7 ●d3: 38 ●l1: 15 ●l2: 6.3 ●l3: 28.6 ●l4: 10.8 ●Mounting hole H11: 8 ●Tensile load without lubrication (Nmax.): 15 ●d4: 17.3 ●Hole tolerance is H11 ●Operating temperature range: -30 to 80°C ●Can be fitted with holding cable EH22400. Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Grip: Polyamide 6 (PA6) ●Spring: Stainless steel Note: ●Unlike the type with a spring behind the ball, the ball is not locked. The pin will come out if you pull it.
