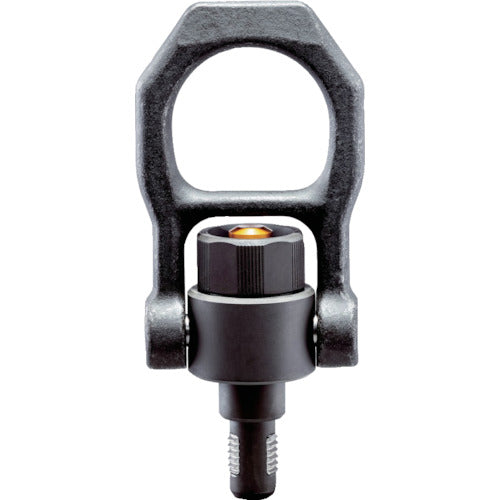

HALDER Threaded clamp lifting pins, swivel type, heat-treated steel 22353.0008 1 piece

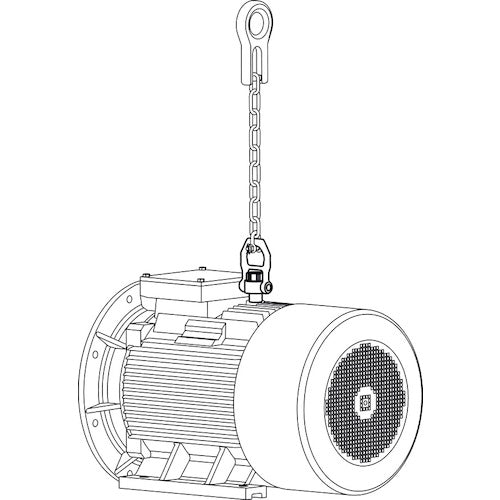

Catalog number: 22353.0008 Features: ● A lifting bracket that can be easily attached and detached by pressing a button. ● Reduces eye bolt work time by approximately 85%. ● Shackle rotates 360 degrees. Applications: ● For work that requires frequent attachment and detachment of eye bolts. ● For transporting and assembling products, parts, jigs, and molds. ● Substitute for eye bolts. Specifications: ● Basic load capacity (t): 2.1 ● Bolt size: M8 ● Neck length (mm): 17.8 ● Thickness (mm): 38 ● Thread diameter: M8 ● Width (mm): 68 ● Length (mm): 141.5 ● Can be hung horizontally Material/Finish: ● Pin and shackle: Heat-treated steel Spring: Stainless steel Caution: ● Be sure to read the instruction manual before use. If the threaded part is not completely clamped, the workpiece may fall. ● Use only in steel screw holes. ● Insert the pin all the way down to the neck and screw it in all the way. After inserting the pin, check that the button has returned to its original position and that the screw part is completely clamped before using. The load capacity F1 is the value in the vertical tensile direction.
