HALDER Threaded lifting pin, heat-treated steel 22352.0008 1 piece

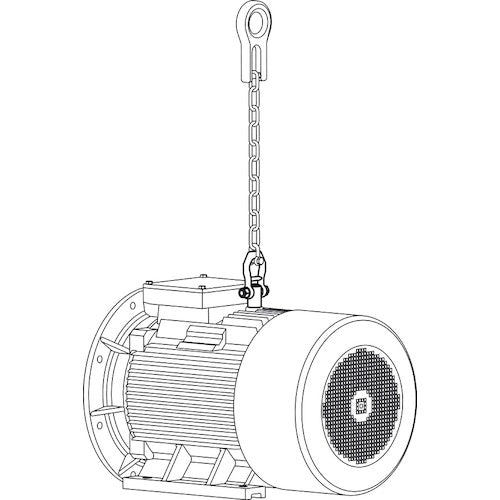

Catalog number: 22352.0008 Features: ● A hanging bracket that can be easily attached and detached by pressing a button. ● It can reduce the work time of eye bolts by about 85%. Applications: ● For work that requires frequent attachment and detachment of eye bolts. ● For transporting and assembling products, parts, jigs, and molds. ● As a substitute for eye bolts. Specifications: ● Basic load capacity (t): 2.1 ● Bolt size: M8 ● Neck length (mm): 17.8 ● Thickness (mm): 21.5 ● Thread diameter: M8 ● Length (mm): 105.3 ● Width (mm): 49 Material/Finish: ● Pin/Shackle: Heat-treated steel ● Spring: Stainless steel ● Push button: Aluminum (Orange oxide coating treatment) Caution: ● The load capacity is the allowable vertical load. ● Insert the pin to the neck and screw it in all the way. ● After inserting the pin, make sure that the orange button has returned to its initial position and that the screw part is completely clamped before using. ●If the screw is not completely clamped, the workpiece may fall. Be sure to read the instruction manual before use. ●Use only for steel screw holes.
