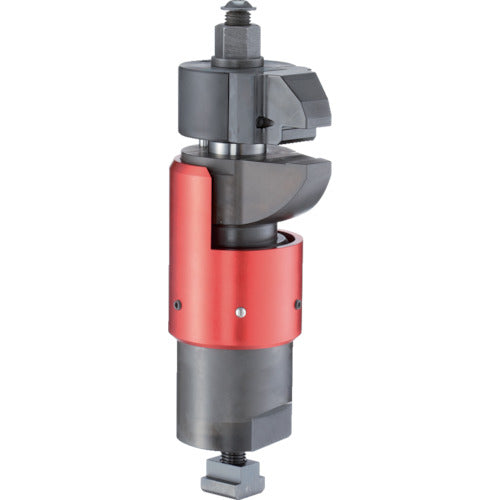

HALDER Floating Clamp M16 23320.0016 1 piece

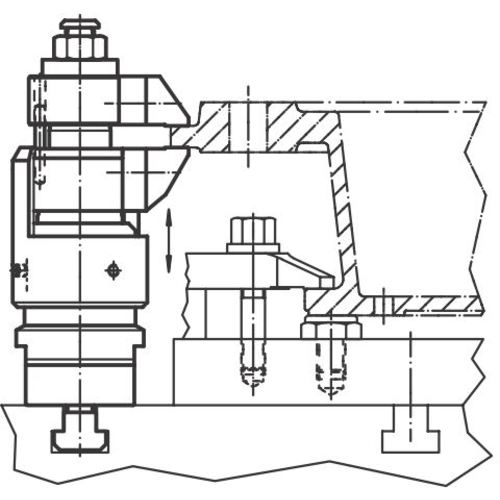

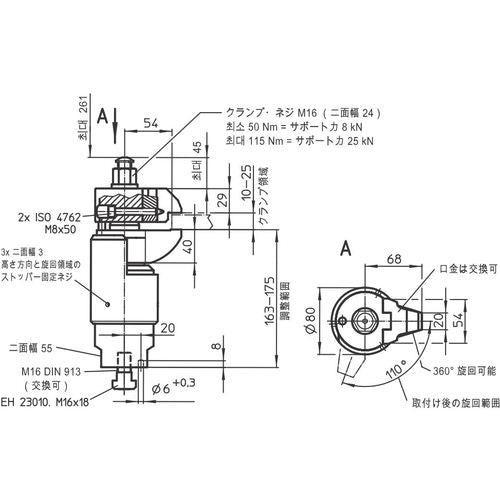

Catalog number: 23320.0016 Features: ● Suppresses vibration of the workpiece during processing. ● Can clamp ribs and tongue-shaped parts of the workpiece, and can clamp the workpiece without deforming it during primary processing of castings, etc. ● Suitable for heavy cutting of large workpieces. ● The lower jaw is fixed. ● For 23320.0012 and 23320.0016, the workpiece is fixed when the clamp screw is tightened, and at the same time the cylinder body is fixed in the vertical direction. Applications: ● After fixing the workpiece to the jig at three points, it is used to clamp and hold the parts that are prone to chatter vibration. Specifications: ● Height (mm): Max 274 ● Rotation direction/angle: Left and right 110° ● Stroke (mm): 12 ● Clamping force (kN): 25 ● Mounting screw (mm): M16 ● Use the M12 at the bottom of the main body to fix the floating clamp to the base plate of the jig (wrench has a two-face width of 46 mm). ●Adjust the vertical and rotational positions of the stopper (red cover) and secure with three set screws (hexagonal wrench two-sided width 2.5mm). ●Be sure to secure it with sufficient slack in the upward direction (as there is a dimensional tolerance of the workpiece). ●Procedure for handling the clamp: Press down on the entire jaw part of the floating clamp. ●Rotate the jaw part to bring it into position to clamp the workpiece (adjust the position of the stopper beforehand). ●When you release your hand, the lower jaw will come into contact with the workpiece with a small spring force. ●Tighten the hexagonal nut (two-sided width 18mm) (minimum torque 15Nm, maximum torque 30Nm). ●At this time, the workpiece will be clamped and at the same time the entire jaw part will be fixed in the vertical direction. ●Reverse the above procedure to release the clamp. ●Standard nozzle included Material/Finish: ●Housing: Aluminium, red oxide coating, body hardened steel ●Body: Hardened steel, nitriding treatment, manganese phosphate treatment, polished ●Nozzle: Hardened steel, nitriding treatment, manganese phosphate treatment Set contents/Accessories: ●Upper nozzle: 23320.0060 Caution: ●Note: To ensure functionality, the screw hole at the bottom must be kept blocked at all times, for example with an M12 x10 bolt.
