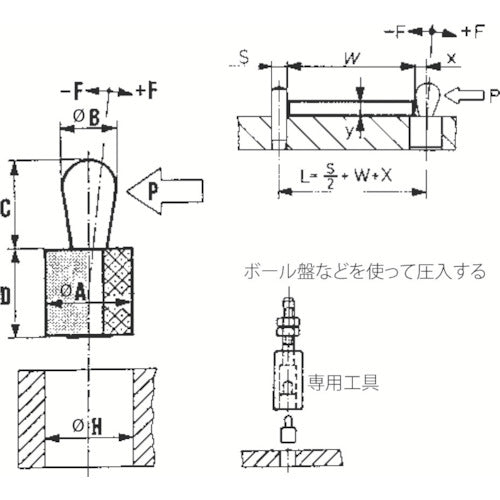

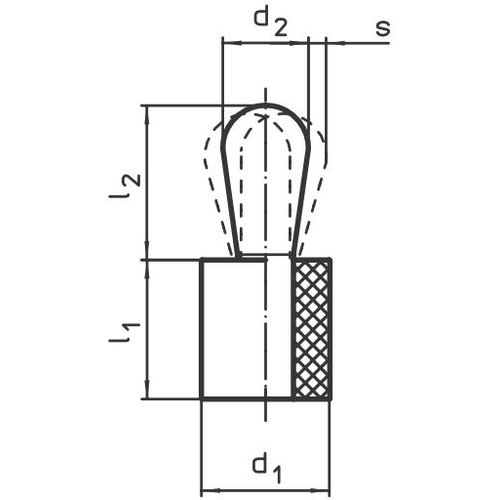

Catalogue number: 22150.0237 Features: ●Used for simple fixing of thin lightweight parts. ●Presses the workpiece laterally to position it. ●Easy to install and does not take up much space. ●Used for positioning and pressing. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. ●For lateral positioning of lightweight workpieces. Specifications: ●Clamping force (N): 20 ●Outer diameter (mm): 10 ●H+0.1: Mounting hole diameter (mm): 9.9 ●+/-F: Pin displacement (mm): +/- 0.5 ●P: Clamping force (N): 20 ●l1 (mm): 9 ●d1 (mm): 10 ●d2 (mm): 6 ●l2 (mm): 10.3 ●Press-fit installation ●Comes with low-pressure plastic spring Material/Finish: ●Body: Plastic ●Pin: Plastic
